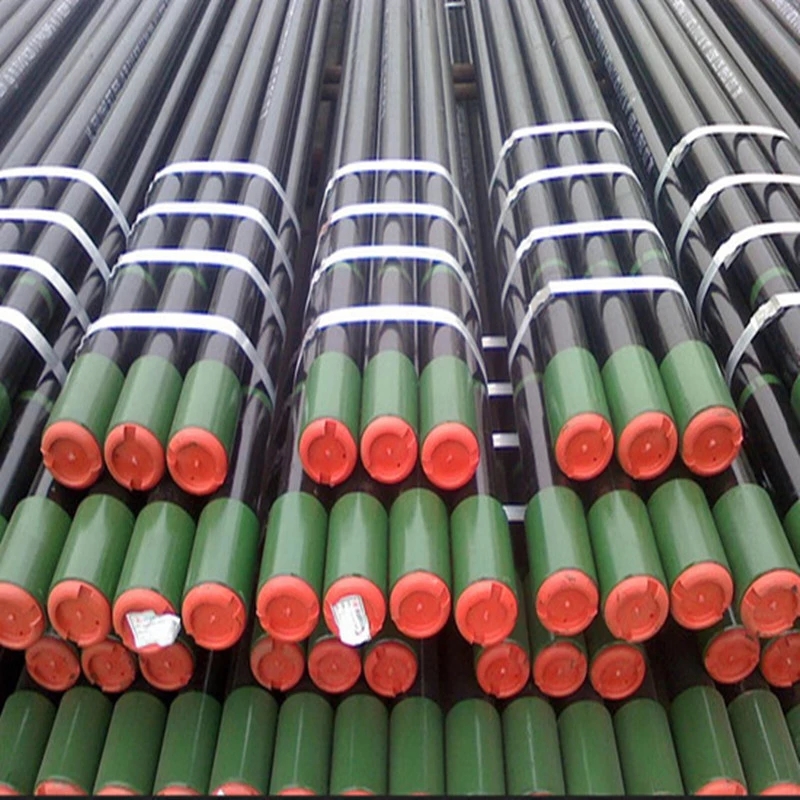

API Tubing

Tubing is a relatively small-diameter pipe that is run into a well to serve as a conduit for the passage of oil and gas to the field surface facilities for processing. Tubing must be adequately strong to resist loads and deformations associated with production and work overs. Further, tubing must be sized to support the expected rates of production of oil and gas.

Available Sizes

Standards and Technical Conditions for Supply:

API Spec 5CT ISO13680

Uses:

Tubing is used for extracting oil or gas from wells.

Dimension

OD 48.26-114.3mm WT 3.18-16mm

Grade

J55, N80-1,N80-Q, L80-1, L80-9Cr,L80-1,C90, T95, C95, P110, Q125 .

Tread types:

 NUE, EUE,, STC, LTC, BTC, XC,HYDRILL CS

Special Service

 Sweet Service, Sour Service, Anti-H2S, NACE MR0175/ISO15156

Accessories:

 Pup Joint, Coupling, Drill Collar, Crossover etc

Specification

Product:

 Tubing Pipe, Oil Tubing, API Tubing Well Tubing, Tubing

Application:

 Used for extracting Oil or Gas from Wells

Size:

 OD: 48.26mm-114.3mm

Width

 WT: 3.18-16mm

Length

 LENGTH: R1, R2, R3

Pipe Standard:

 API 5CT PSL1/PSL2  J55,K55,N80-1,N80-Q, API 5CT PSL1/PSL2  L80-1, L80-9Cr,L80-13Cr,C90, C95, P110, Q125
